Multiwire Spring

Multi-wire springs are made from wire strands with a wide variety of strand structures and are used as helical compression, torsion or shaped springs. Our multi-wire springs are technically advanced products. They are mainly used when single-wire springs made of round or profile wire fail due to high impact loads and high impact frequencies or cannot guarantee operational safety. Due to the structure of the strands, increased spring forces and reduced torsional stresses occur in multi-wire springs with large spring deflections compared to single-wire springs.

The tensile stresses in the wire cross-section significantly weaken the spring-destroying torsional stresses and thus increase the damping.

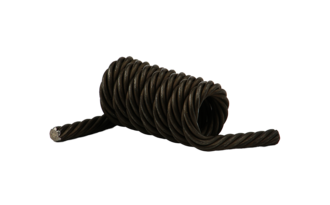

Nahaufnahme einer Mehrdrahtfeder - verfügbar bei der Dr. Werner Röhrs GmbH & Co. KG

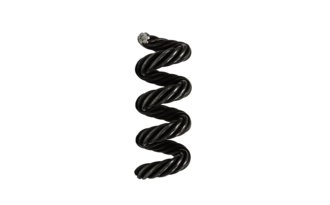

Freigestellte Nahaufnahme einer Mehrdrahtfeder
Bild einer kleinen Mehrdrahtfeder - verfügbar bei der Dr. Werner Röhrs GmbH & Co. KG

The decisive advantages of RÖHRS multi-wire springs:

  • Accommodate high shock speeds and peak loads
  • Acceptance of high load frequencies
  • High damping properties
  • Optimization of damping and guiding properties as well as service life through plastic coating
  • Optimum material utilization of the strand cross-section through conversion of torsional stress into tensile stress
  • High level of operational reliability, since the spring force is hardly affected in the event of wire breaks within the wire strand
  • Long spring deflection, even with small outer diameters
  • Flat characteristic with progressive increase as the block length is approached

To our spring inquiry form
